Espac....

TYPE OF MACHINE

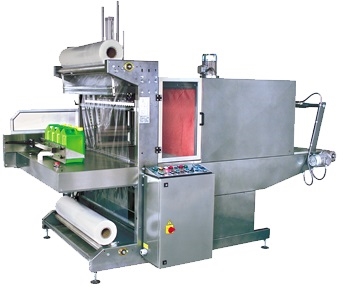

Semi-automatic shrink wrapper with manual loading

WRAPPING METHOD AND MATERIAL
Double reel with polyethylene film - flat leaf (LDPE)

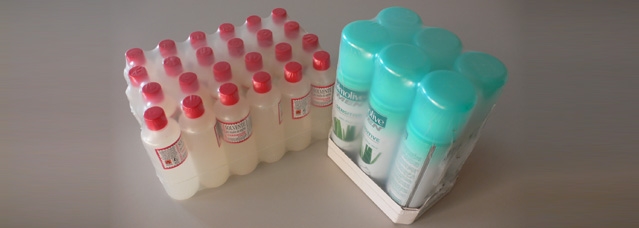

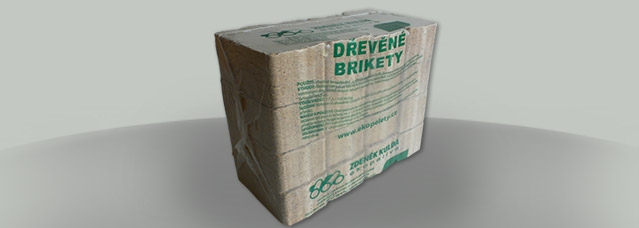

• Shrink wrapper with manual loading system, suitable for small and medium productions where it's often required to change package sizes and shapes (single units or multipacks).
• Possibility to achieve total closure of the pack by film overlapping
• Besides the monoblock version, it's possible to supply wrapping unit and separate shrink tunnel

(B) (A)

* tension 400V 50Hz
** the maximum dimensions are indicative and they can change depending on the package characteristics

For all of the above machines various versions are available, depending on different product dimensions and higher production speeds

Standard equipment:

• Motorized upper and lower film unwinding
• Sealing station
• Hold down press for product stabilisation during wrapping phase
• Fast cooling sealing
• Shrink tunnel with mesh conveyor belt with adjustable speed controlled by inverter
• Pack cooling fan at the outlet

Optional:

• Tamping rollers at the outlet
